SAGA Adaptors are the modular interface between your devices & the power track, available in multiple configurations to suit every need.

Each adaptor snaps effortlessly into surface or recess tracks.

All units meet IC safety standards with built in surge protection, overload reset, and child proof shutters.

Saga Background
Saga Background

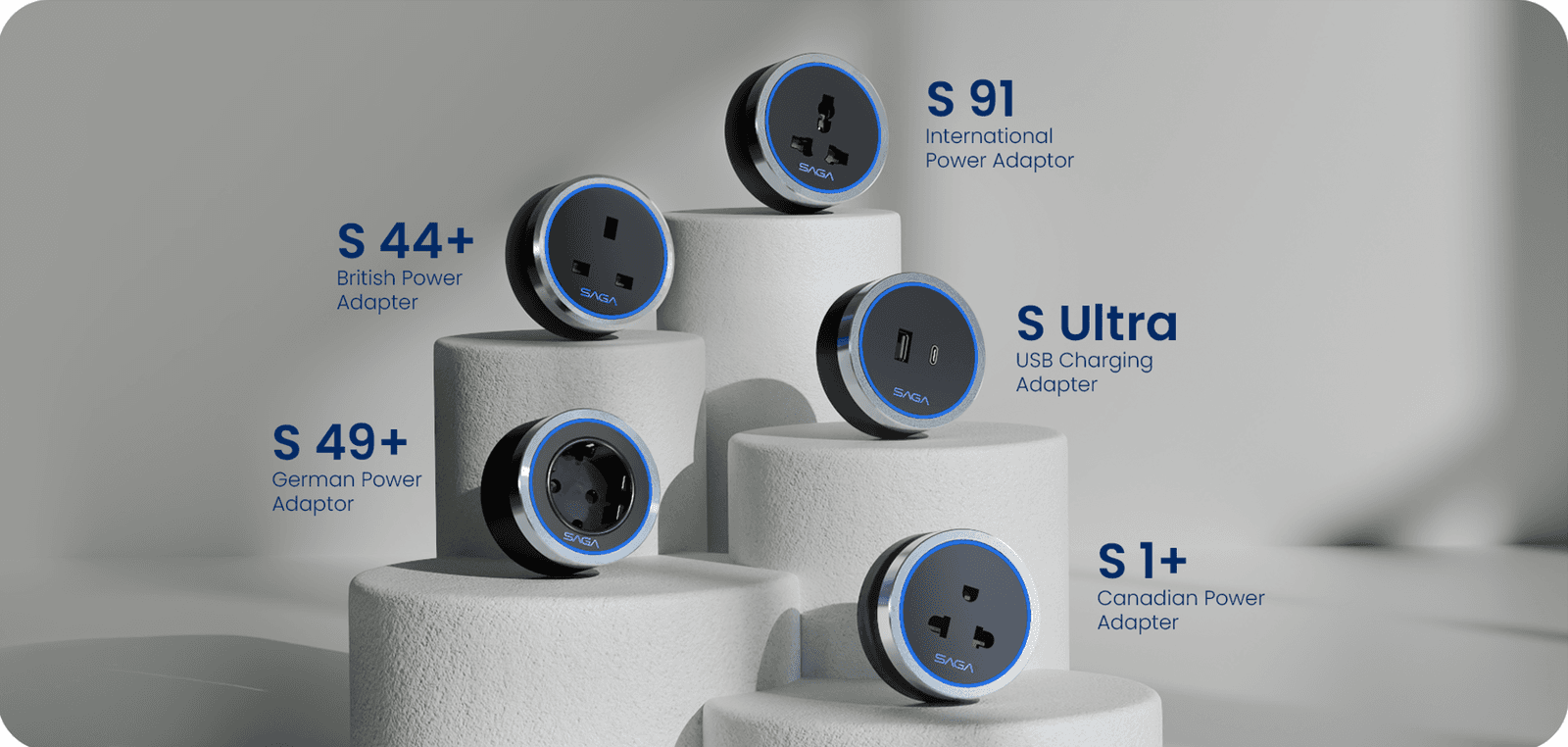

SAGA Adaptors

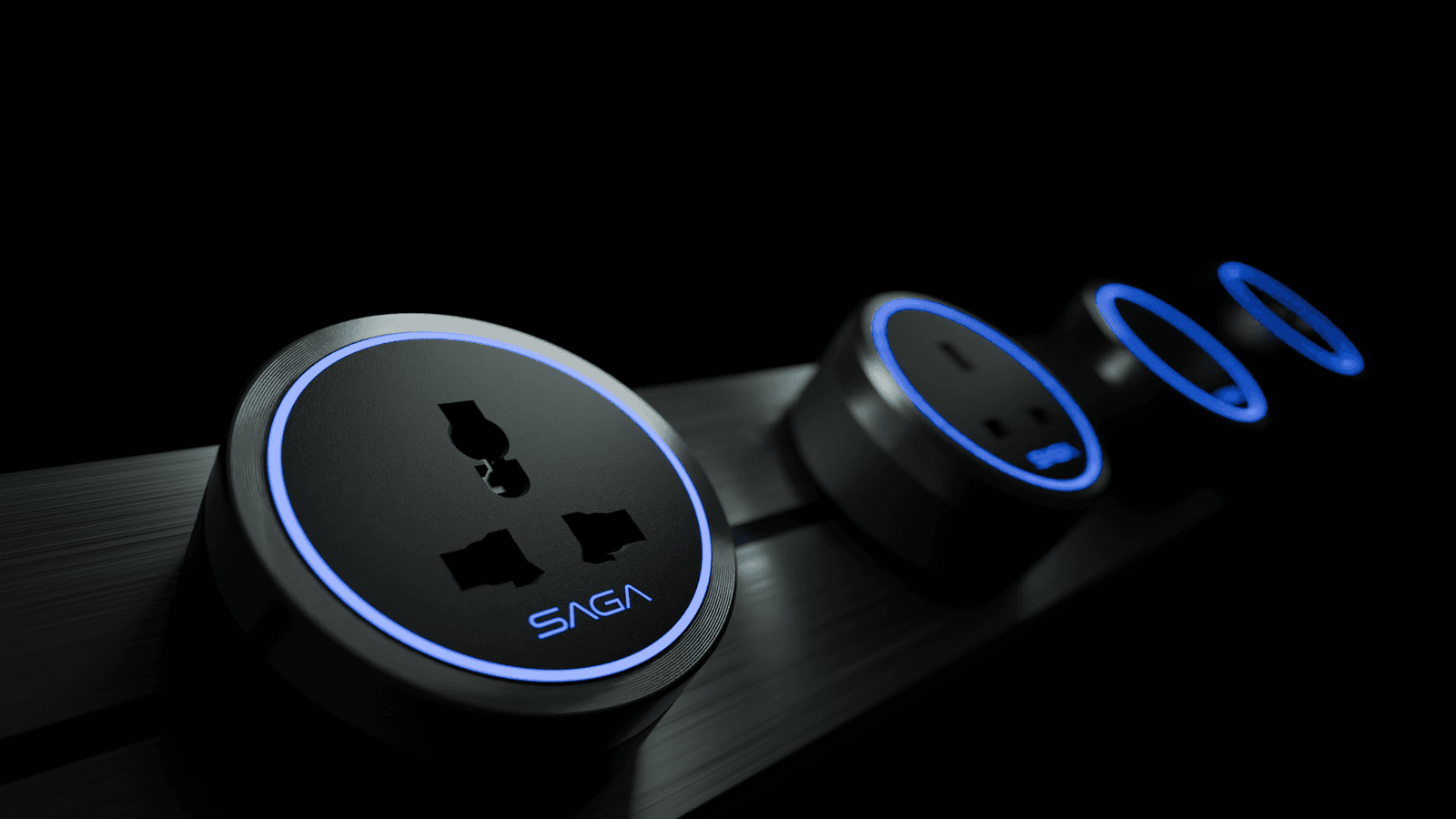

Surface Power Track

Voltage and Ampere ratings

ProductProduct WeightProduct SizeRated VoltageRated CurrentRated PowerOperating Temperature
S 490.086 kg71.5mm x 71.5mm x 38.6mm250 V AC15 A3750 W-20°C – 45°C
S 440.080 kg71.5mm x 71.5mm x 29.6mm250 V AC13 A3250 W-20°C – 45°C
S 9I0.080 kg71.5mm x 71.5mm x 29.6mm250 V AC13 A3250 W-20°C – 45°C
S Ultra0.080 kg (est.)71.5mm x 71.5mm x 29.6mm (est.)250 V AC13.25 A (USB-C)100 W x 2-20°C – 45°C
S One0.070 kg (est.)71.5mm x 71.5mm x 28.0mm250 V AC10 A (combo)2500 W (est.)-20°C – 45°C

All Models comply with international electrical standards (IEC 60884 - 1) and aretested for up 10,000 insertions.

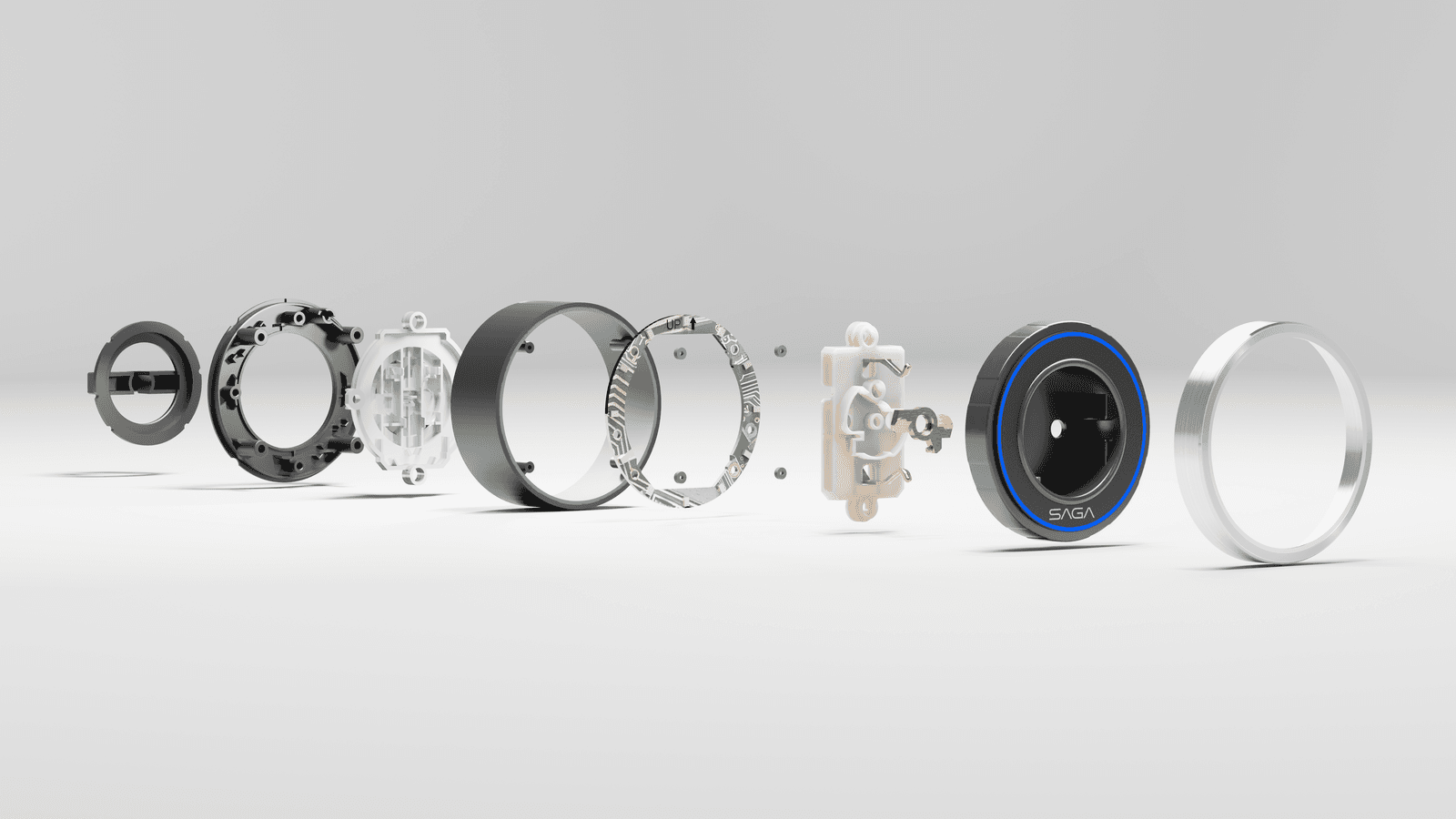

Saga adaptor exploded view

Discover the craftsmanship behind SAGA adaptors.

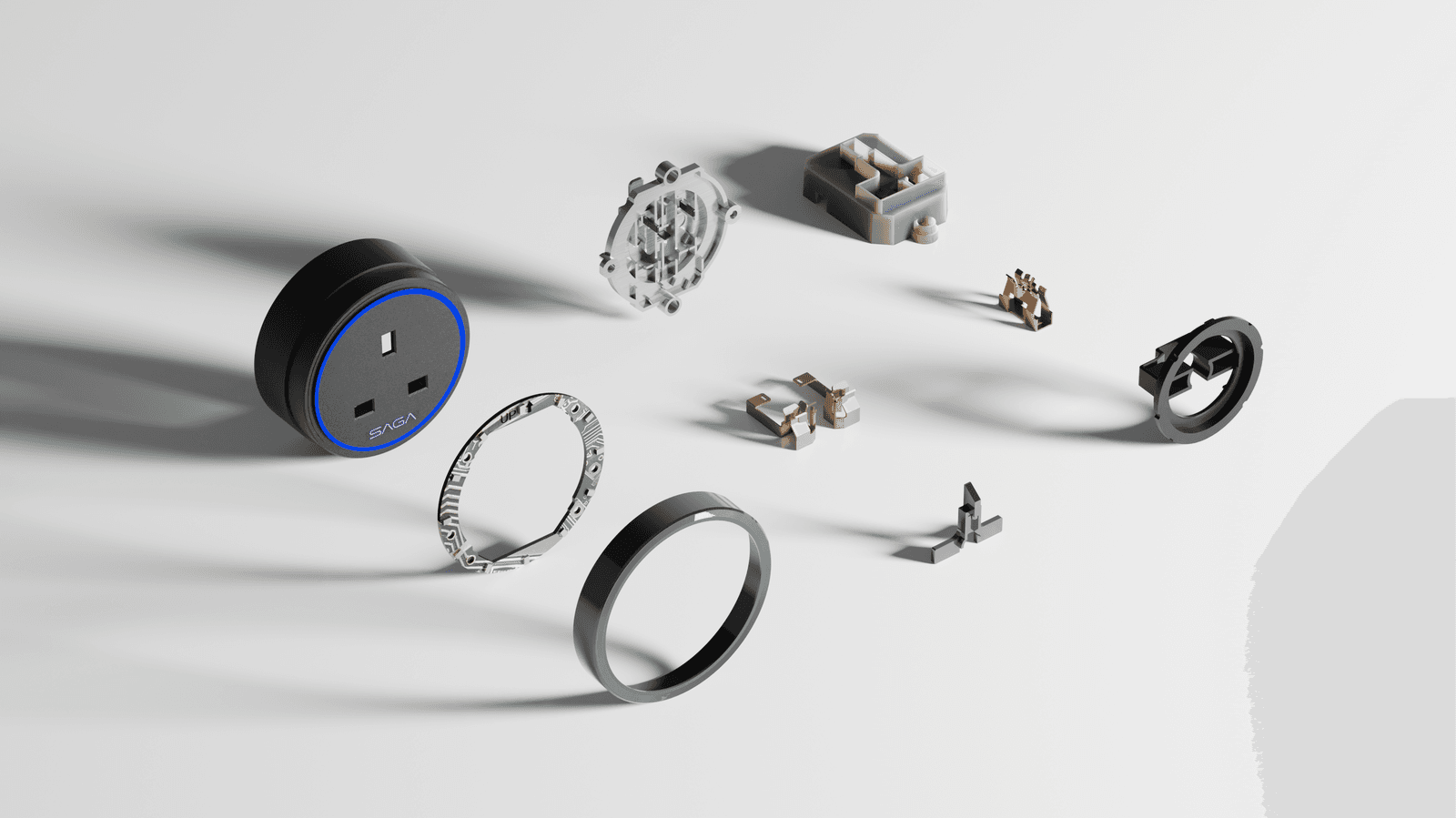

Saga adaptor components (top)

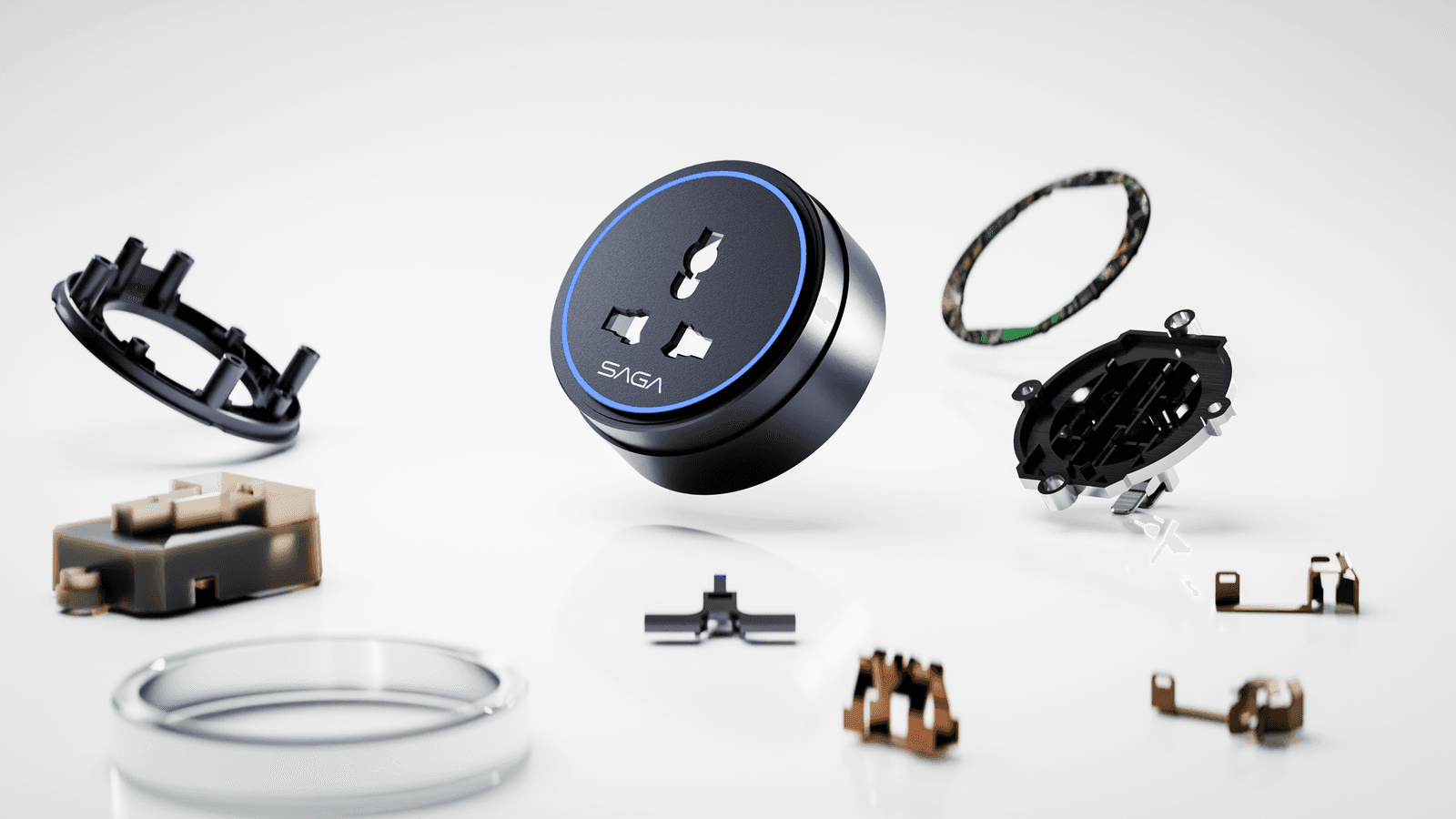

Saga adaptor components (bottom)
